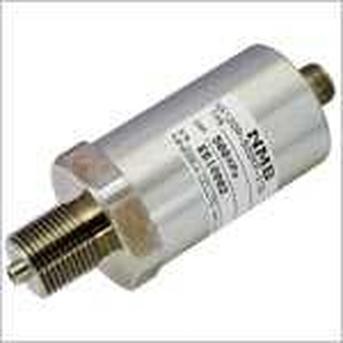

Detail Pressure Sensor : NS100A Series
*Highly accurate pressure transmitter 0.2% R.O. as a standard by SOS technology. including Non-linearity, Hysteresis and Repeatability.)
0.1 % R.O. is also available as a high accurate type.
High reliability and durability by SOS technology.
Can correspond to the absolute pressure and compound pressure
Small size and light weight
Wide range pressure from 200kPa to 50MPa can be measure.
Three kinds ( Cable directly connected type) , ( connector type) and ( terminal box type)
Specifications
Rated capacity 200 kPa ~ 50 MPa
Safe overload 200 % R.C.
Ultimate overload 300 % R.C.
Accuracy 0.2 % R.O. ( including non-linearity, hysteresis and repeatability)
Rated output Current : 4 mA ~ 20 mA ( 2 wires method, Load resistance 500 ohm or less, at 24 V)
Voltage : 0 V ~ 5 V, 0 V ~ 10 V ( Load resistance 5 k-ohm or more)
Response frequency 1 kHz
Power supply voltage DC 24 V( 18 V ~ 28 V)
Power consumption Approx. 20 mA
Insulation resistance 1 000 M or more ( DC 50 V)
Temp. range, compensated -20 ~ 70
Temp. range, safe -30 ~ 80
Temp. effect on zero 0.2 % R.O./ 10
Temp. effect on output 0.2 % LOAD/ 10
Cable 4.7, 2 m shielded cable directly attached,
Cable end separated ( Cable attached type)
Connector R03-RB5F( receptacle) ( Connector type)
Class of protection IP55 or equivalent ( Cable attached type or terminal box type)
IP44 or equivalent( Connector type)
Material of pressure hole Stainless steel
Material of cover Alluminium alloy ( with almite processing)
Material of pressure diaphragm Single crystal sapphire, etc.,
Mounting screw G3/ 8{ PF} , R3/ 8{ PT}
( Please contact us for mounting screw of 1/ 8 and 1/ 4.)
Weight Cable attached type and connector type : Approx. 200 g
Terminal box type : Approx. 400 g
Tightening torque 20 Nem ~ 40 Nem { 2.04 kgfem ~ 4.08 kgfem}
Special specification
NS100A-D6 : Guranteed accuracy 0.2 % R.O. at negative side. Power supply voltage : DC15 V
NS100A-H : As an amplifier part is are separated.( The highest, environmental temperature is 200 )
NS100A-S : IP67 waterproof construction with zero adjustment factor)
NS102 : Pressure inlet port : 10
