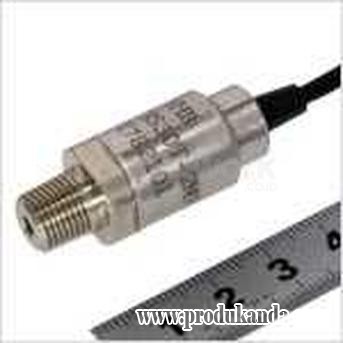

Detail Pressure Sensor : NS30T ( -H) Series
*Small size and light weight
The manifold type pressure can be measured by high accuracy and the high response.
Natural frequency : 72 kHz~ 566 kHz
Accuracy 0.2 % R.O.
Temperature environment 150 at max.( NS30T-H series)
* Application
Experimental use of automatic transmission engine, Various test benches, Solenoid valve experiment device, Calorie meter, CO2 compressor,
Flow measurement device
*
Specifications
Parts No. NS30T NS30T-H
Rated capacity 200 kPa~ 10 MPa 200 kPa~ 10 MPa
Safe overload 200 % R.C.
Ultimate overload 300 % R.C.
Accuracy 0.2 % R.O. ( including non-linearity, hysteresis and repeatability)
Rated output
1.5 mV/ V 0.15 mV/ V
( NS30T-200KP( -H) : 1.0 mV/ V 0.10 mV/ V)
Excitation, recommended DC10 V
Excitation, maximum DC15 V
Zero balance 0.05 mV/ V
Input resistance 700 ~ 900
Output resistance 700 ~ 900
Insulation resistance 1 000 M or more ( DC 50 V)
Temp. range, compensated -20 ~ 70 -30 ~ 150
Temp. range, safe -30 ~ 80 -40 ~ 160
Temp. effect on zero 0.2 % R.O./ 10
Temp. effect on output 0.2 % LOAD/ 10
Class of protection IP65
Material of pressure hole Stainless steel ( SUS340L)
Material of diaphragm Sapphire
Mounting screw G1/ 8{ PF} , R1/ 8{ PT}
Tightening torque 20 Nem ~ 40 Nem
Cable 3.8, shielded high temperature 1 m cable directly attached, cable end is separated
Weight Approx. 45 g ( only main body)
*
High accurate measurement of compound pressure is possible.
Natural frequency : 72 kHz~ 1 278 kHz
Accuracy 0.2 % R.O.
Temperature environment 150 or less is possible.
* Application
Automatic transmission or engine test stand.
Changeable valve lift mechanism testing instrument and various test benches, Solenoid valve experiment device, Calorie meter, CO2 compressor, Flow measurement device
*
Specifications
Parts No. NS10T NS10T-H
Rated capacity 200 kPa~ 50 MPa 200 kPa~ 20 MPa
Safe overload 200 % R.C.
Ultimate overload 300 % R.C.
Accuracy 0.2 % R.O. ( including non-linearity, hysteresis and repeatability)
Rated output
1.5 mV/ V 0.15 mV/ V
( NS10T-200KP( -H) : 1.0 mV/ V 0.10 mV/ V)
Excitation, recommended DC10 V or less
Excitation, maximum DC30 V DC15 V
Zero balance 0.05 mV/ V
Input resistance 700 ~ 900
Output resistance 700 ~ 900
Insulation resistance 1 000 M or more ( DC 50 V)
Temp. range, compensated -20 ~ 70 -30 ~ 150
Temp. range, safe -30 ~ 80 -40 ~ 165
Temp. effect on zero 0.2 % R.O./ 10
Temp. effect on output 0.2 % LOAD/ 10
Class of protection IP55 IP65
Material of pressure hole Stainless steel ( SUS340L)
